- 5G SA and NSA Theoretical rates reach 2 Gbps down and 1 Gbps up on SA, and 2.2 Gbps down and 575 Mbps up on NSA.
- 4G LTE support On 4G LTE networks the theoretical rates are 600 Mbps down and 150 Mbps up.
- Seven 5G bands 5G NR bands n1, n20, n28, n41, n77, n78 and n79 are supported, along with fifteen LTE bands.
- Two gigabit Ethernet ports Two 10/100/1000M RJ45 LAN ports, a Micro SIM slot and Wi-Fi 802.11b/g/n handle the local connections.
- Wide supply range It runs from DC 9-36 V, drawing 0.6 A on average and 1.3 A at peak at 12 V.
- Compact aluminum housing The housing measures 131.5 × 88 × 27.4 mm and weighs about 300 g without antennas.
Описание

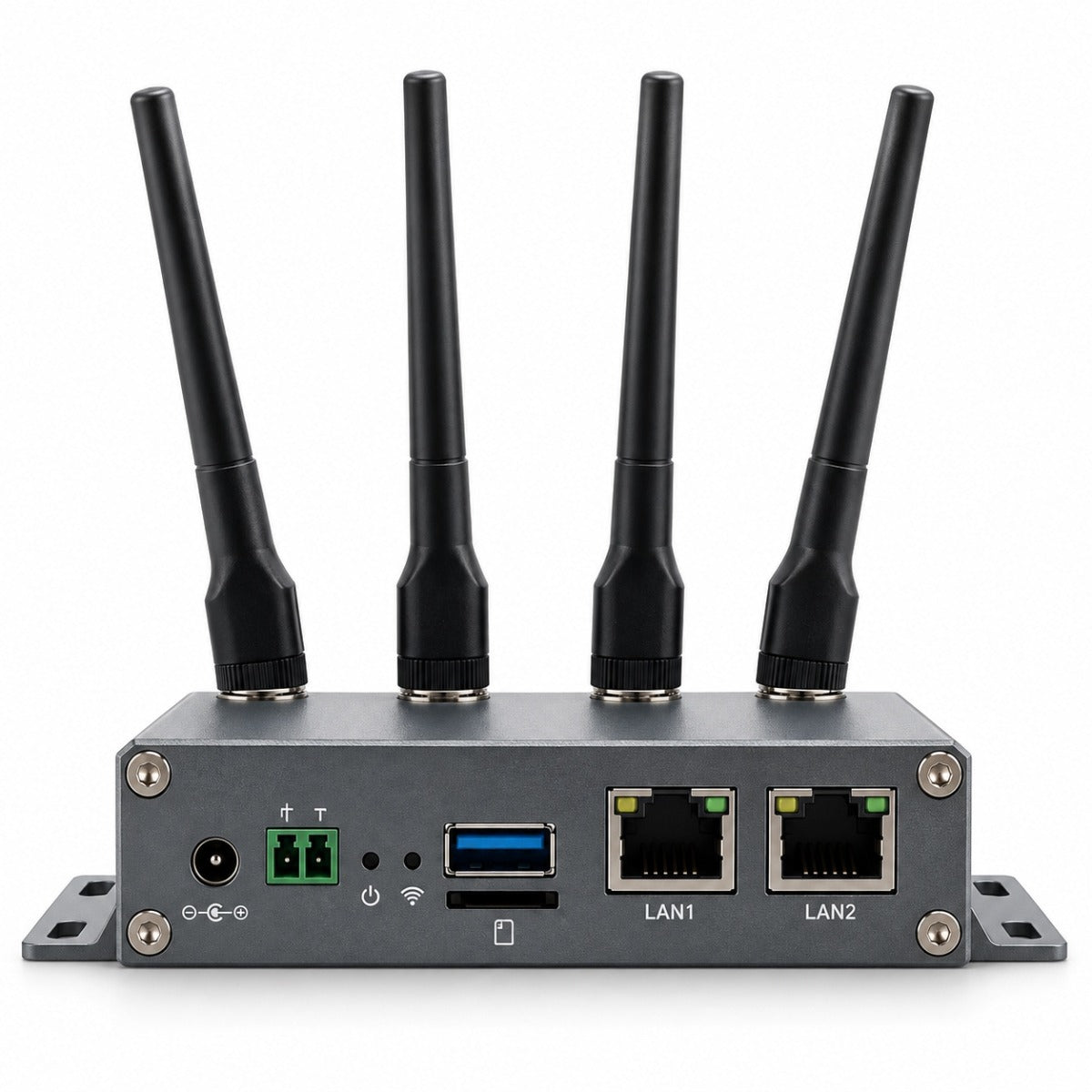

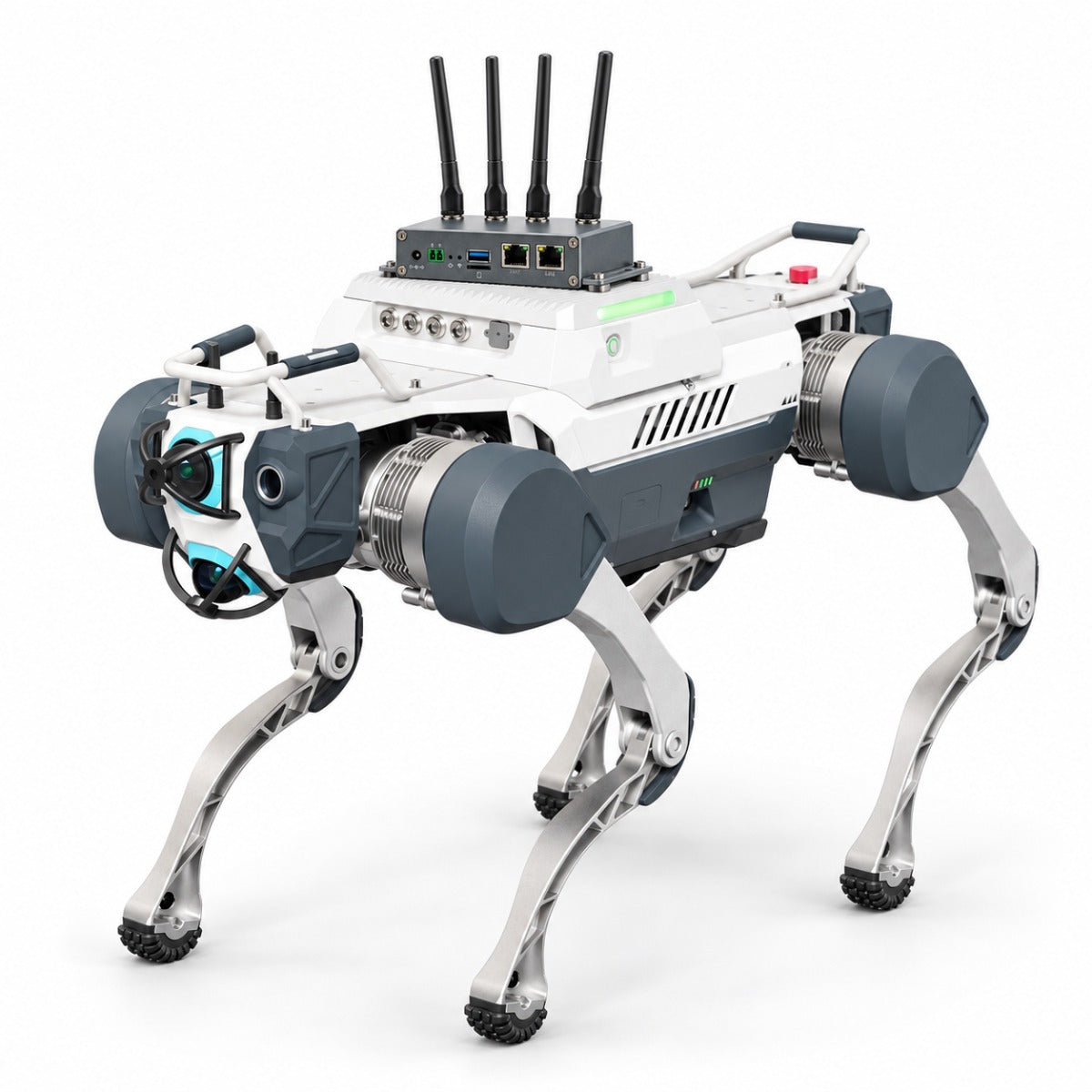

The Lierda MX880 is a 5G NR and 4G LTE router module, fitted here as a connectivity payload for the Deep Robotics X30 quadruped. It gives the robot a cellular data connection, so it can stay linked to its operators and software over a mobile network. It is an accessory; the X30 itself is not included.
Theoretical rates are 2 Gbps down and 1 Gbps up on 5G standalone (SA), 2.2 Gbps down and 575 Mbps up on non-standalone (NSA), and 600 Mbps down and 150 Mbps up on 4G LTE. It has two 10/100/1000M RJ45 Ethernet ports, a Micro SIM slot, Wi-Fi 802.11b/g/n, a USB Type-C port for module upgrades and a manual reset button, with a 32-bit dual-core processor, 256 MB of LPDDR3 and 32 MB of flash.
Band support decides where it will work. It covers 5G NR bands n1, n20, n28, n41, n77, n78 and n79, and LTE bands B1, B2, B3, B4, B5, B7, B8, B20, B26, B28, B34, B38, B39, B40 and B41. A SIM card and data plan from a local operator are needed; check that the operator's network where the robot works uses one of these bands. Network compatibility and radio approval for your country are confirmed with the quotation.
Unlike the X30's camera and positioning payloads, the MX880 adds no sensing: it is the link that carries their data. The aluminum-alloy unit measures 131.5 × 88 × 27.4 mm, weighs about 300 g without antennas, runs from DC 9-36 V (12 V recommended) and is powered from and connected to the robot's control system. It operates from -20 °C to 70 °C at 5-95% relative humidity, non-condensing.
Key Capabilities
- 5G SA and NSA: Theoretical rates reach 2 Gbps down and 1 Gbps up on SA, and 2.2 Gbps down and 575 Mbps up on NSA.
- 4G LTE support: On 4G LTE networks the theoretical rates are 600 Mbps down and 150 Mbps up.
- Seven 5G bands: 5G NR bands n1, n20, n28, n41, n77, n78 and n79 are supported, along with fifteen LTE bands.
- Two gigabit Ethernet ports: Two 10/100/1000M RJ45 LAN ports, a Micro SIM slot and Wi-Fi 802.11b/g/n handle the local connections.
- Wide supply range: It runs from DC 9-36 V, drawing 0.6 A on average and 1.3 A at peak at 12 V.
- Compact aluminum housing: The housing measures 131.5 × 88 × 27.4 mm and weighs about 300 g without antennas.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the full manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Характеристики
Характеристики
| Module | Lierda MX880 |
|---|---|
| Product Type | 5G / 4G router module (accessory) |
| Compatible With | Deep Robotics X30 quadruped |
| CPU | 32-bit dual-core processor |
| Memory / Storage | 256 MB LPDDR3 + 32 MB flash |
| Ethernet | 2 × 10/100/1000M LAN (RJ45) |
| SIM Card Slot | 1 × Micro SIM (ETSI and IMT-2000 compliant) |
| USB | Type-C, for module upgrades |
| Reset | Manual reset button |
| 5G NR Theoretical Rate | NSA 2.2 Gbps / 575 Mbps; SA 2 Gbps / 1 Gbps (down / up) |
| 4G LTE Theoretical Rate | 600 Mbps / 150 Mbps (down / up) |
| 5G NR Bands | n1, n20, n28, n41, n77, n78, n79 |
| 4G LTE Bands | B1, B2, B3, B4, B5, B7, B8, B20, B26, B28, B34, B38, B39, B40, B41 |
| Wi-Fi | 802.11b/g/n |
| Dimensions | 131.5 × 88 × 27.4 mm (±0.5 mm) |
| Weight | Approx. 300 g (excluding antennas) |
| Housing | Aluminum alloy, iron gray |
| Mounting Method | Desktop / wall-mounted |
| Indicators | PWR, 5G, 4G, SYS |
| Input Voltage | DC 9-36 V (12 V recommended) |
| Operating Current (12 V) | 0.6 A average, 1.3 A peak, 0.3 A standby |
| Operating Temperature | -20 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Relative Humidity | 5-95% RH, non-condensing |
Отрасли
Часто задаваемые вопросы
A 5G and 4G cellular data connection for the robot, with two gigabit Ethernet ports and Wi-Fi. It adds no sensors of its own; it carries the data of the robot and its payloads. The X30 itself is not included.
It supports 5G NR bands n1, n20, n28, n41, n77, n78 and n79 and fifteen LTE bands. Check that your operator uses one of them where the robot works; network compatibility and radio approval are confirmed with the quotation.
A Micro SIM card and a data plan from a mobile operator where the robot will work. The module itself is powered from and connected to the X30.
Theoretical rates are 2 Gbps down and 1 Gbps up on 5G SA, 2.2 Gbps down and 575 Mbps up on 5G NSA, and 600 Mbps down and 150 Mbps up on 4G LTE. Real throughput depends on the network.
It is compatible with the X30. The X30 Pro is the professional variant of the same robot, and fitment on your unit is confirmed with the quotation; the LYNX M20 is not covered by this kit.
The Deep Robotics X30 Lierda MX880 5G Module is priced at €1.925 in your market.
