- Two onboard computers An 8-core CPU in the body runs the arms, and an 8-core CPU in the head handles vision.
- 10 TOPS of AI compute The head computer runs perception models next to the binocular camera.
- High-computing module option Unitree offers add-on modules in several brands and models, such as Orin-class boards with 40–100 TOPS.
- Open software stack The underlying system, arms, audio, lighting and visual control have open interfaces for your own code.
- Seven-joint arms Two 7-DOF arms with 555 mm of forearm and upper arm on a fixed base.
- Smart E items on the quotation The end effector and any compute module or wrist camera in Smart E are listed item by item.
Descripción

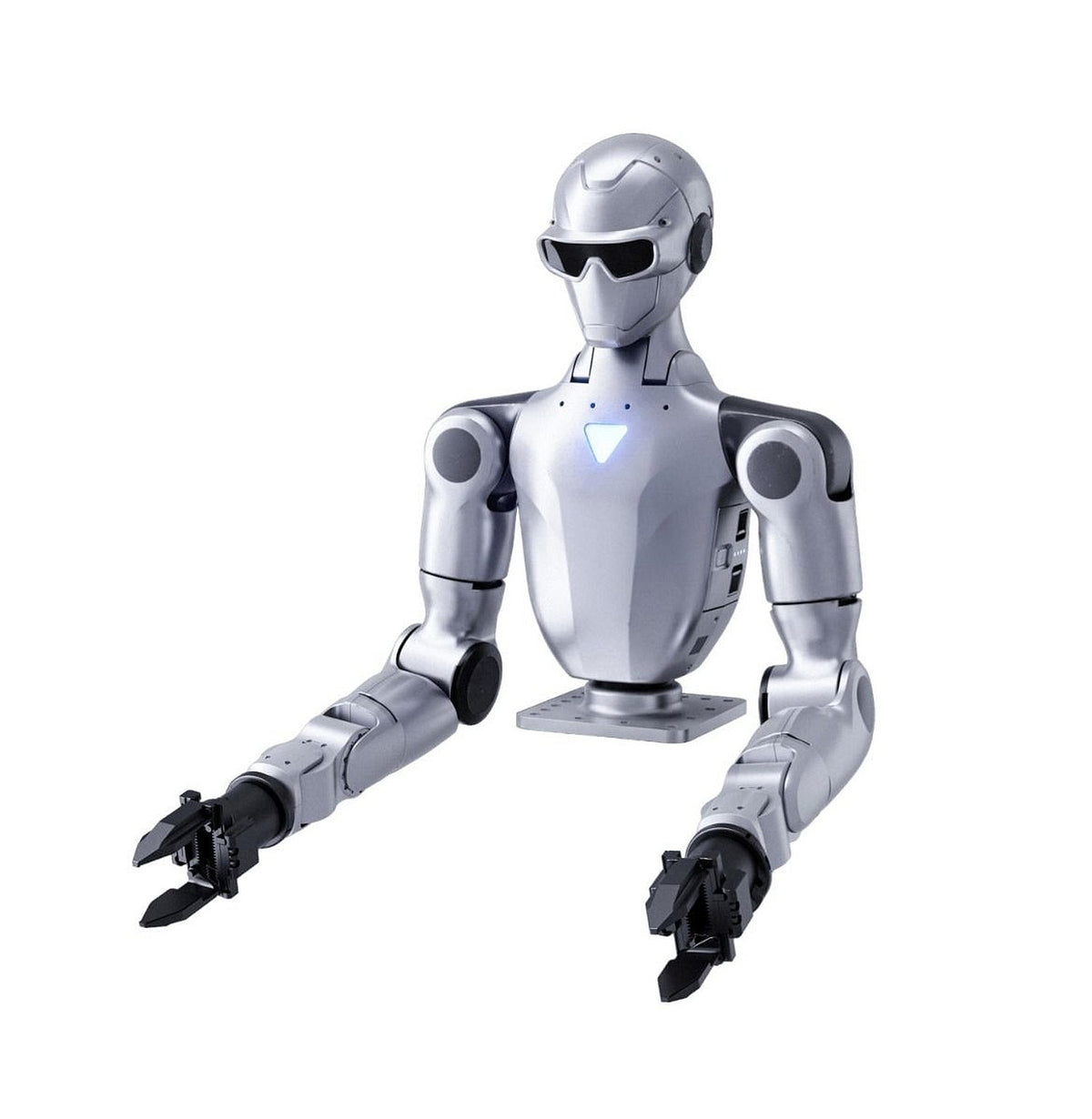

The Unitree R1-A7 Smart E is the R1-A7 dual-arm humanoid in its Smart E package. Unitree splits the R1-A7's computing between two boards: an 8-core CPU in the body that runs the arms and joints, and an 8-core CPU with 10 TOPS of AI compute in the head, next to the binocular camera it serves.
For heavier workloads — larger perception models, learned manipulation policies running on the robot, several camera streams at once — Unitree offers a high-computing module as an accessory, in several brands and models, such as Orin-class boards with 40–100 TOPS. Whether Smart E includes one, which one, and which end effector and wrist camera come with it, is itemised on the quotation.
The robot under the package is the standard R1-A7: two 7-DOF arms with 555 mm of forearm and upper arm, a ±150° waist and a 2-DOF head, 19 degrees of freedom with grippers, about 13 kg on a fixed base. All eight R1-A7 Smart packages, A to H, share it and differ in their bundled items, so compare them by the line items on their quotations.
On the software side, the underlying system, arms, audio, lighting and visual control are open for secondary development, the binocular module exposes RGB and depth-map interfaces, and the robot takes smart OTA updates over WiFi 6.
Key Capabilities
- Two onboard computers: An 8-core CPU in the body runs the arms, and an 8-core CPU in the head handles vision.
- 10 TOPS of AI compute: The head computer runs perception models next to the binocular camera.
- High-computing module option: Unitree offers add-on modules in several brands and models, such as Orin-class boards with 40–100 TOPS.
- Open software stack: The underlying system, arms, audio, lighting and visual control have open interfaces for your own code.
- Seven-joint arms: Two 7-DOF arms with 555 mm of forearm and upper arm on a fixed base.
- Smart E items on the quotation: The end effector and any compute module or wrist camera in Smart E are listed item by item.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the full manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Características
Especificaciones
| Brand | Unitree Robotics |
|---|---|
| Model | R1-A7 Smart E |
| Package | One of eight R1-A7 Smart packages (Smart A to Smart H) |
| Robot Type | Dual-arm humanoid upper body (head, waist, two arms) — no legs |
| Base | Fixed base, no wheeled chassis (the wheeled version is the R1-A7-D) |
| Arm Degrees of Freedom | 7 per arm (7 × 2) |
| Waist Degrees of Freedom | 1 (yaw ±150°) |
| Head Degrees of Freedom | 2 (yaw ±115°, pitch ±36°) |
| Total Degrees of Freedom (with Gripper) | 19 |
| Forearm + Upper Arm Length | 555 mm |
| Dimensions | 835 × 357 × 190 mm |
| Weight | Approx. 13 kg (with external power supply) |
| Max Arm Payload | 2–4 kg (varies greatly with arm extension posture) |
| End-Clamp Accuracy | ±0.1 mm |
| Max Shoulder Torque | 60 N·m |
| End Effector Options | Two-finger gripper / three-finger dexterous hand / five-finger dexterous hand (1–7 DOF per end) |
| End Effector in Smart E | Confirm at quote |
| Camera | Binocular head camera (146° horizontal, 124° vertical FOV, 60 mm eye spacing; RGB and depth-map interfaces) |
| Wrist Camera | Optional — confirm at quote |
| Computing | Body: 8-core high-performance CPU; head: 8-core high-performance CPU + 10 TOPS |
| High-Computing Module | Optional, multiple brands and models, e.g. Orin (40–100 TOPS) — confirm at quote |
| Audio | 4-microphone array, dual speakers (3 W × 2) |
| Connectivity | WiFi 6, Bluetooth 5.2 |
| Joints | Low-inertia high-speed inner-rotor PMSM motors; crossed roller + deep groove ball output bearings; dual encoders (arm); hollow internal wiring; local air cooling |
| Power Supply | External power or Li-ion battery (battery in this package: confirm at quote) |
| Battery Life (Battery-Powered) | Approx. 1.5 h |
| Charger | Included |
| Software | Smart OTA updates; secondary development with open interfaces for the underlying system, arm, audio, lighting and visual control |
| Warranty | 12 months (manufacturer) |
Sectores
Preguntas frecuentes
The Unitree R1-A7 Smart E Dual-Arm Humanoid Robot is priced at €15.850 in your market.
Two: an 8-core high-performance CPU in the body and an 8-core high-performance CPU with 10 TOPS of AI compute in the head.
Unitree offers high-computing modules in several brands and models, such as Orin-class boards with 40–100 TOPS. Whether Smart E includes one, and which, is listed on the quotation, together with its end effector and any wrist camera.
Yes. The underlying system and the arm, audio, lighting and visual-control interfaces are open for secondary development, and the head's 10 TOPS can run perception models onboard.
No. It is a dual-arm upper body with a head and waist on a fixed base. Unitree's walking R1 humanoid is sold as the R1 Edu editions, and the wheeled version of this robot is the R1-A7-D.
It is sourced new through established distribution channels, ships worldwide and carries Unitree's 12-month manufacturer warranty, with technical support coordinated through Unitree's own service network. On-site installation is not included.
Unitree R1-A7 Smart E Dual-Arm Humanoid Robot
- Precio regular
- €15.850,00
