- Mobile base and robotic arm in one Integrates an autonomous mobile platform with a SIASUN GCR-series collaborative arm, so a single robot can travel between stations and handle workpieces with high precision.
- SLAM and QR-code navigation Combines SLAM mapping with QR-code guidance for dependable localization and repeatable autonomous travel across the facility.
- Up to 670 kg platform payload The mobile base carries up to 670 kg of material while the arm handles individual parts, supporting combined transport-and-handling missions.
- Three collaborative arm options Available with the GCR10, GCR14, or GCR20 arm, rated for end-effector payloads of 10 kg, 14 kg, and 20 kg respectively.
- ±0.5 mm end-effector accuracy Overall end-effector accuracy of ±0.5 mm, backed by ±10 mm / ±1° parking accuracy, enables precise part pick-up, feeding, and unloading.
- Multi-layer safety system Collision detection, safety edges, obstacle-avoidance LiDAR, and emergency-stop devices support safe autonomous operation in shared industrial spaces.
Beschreibung

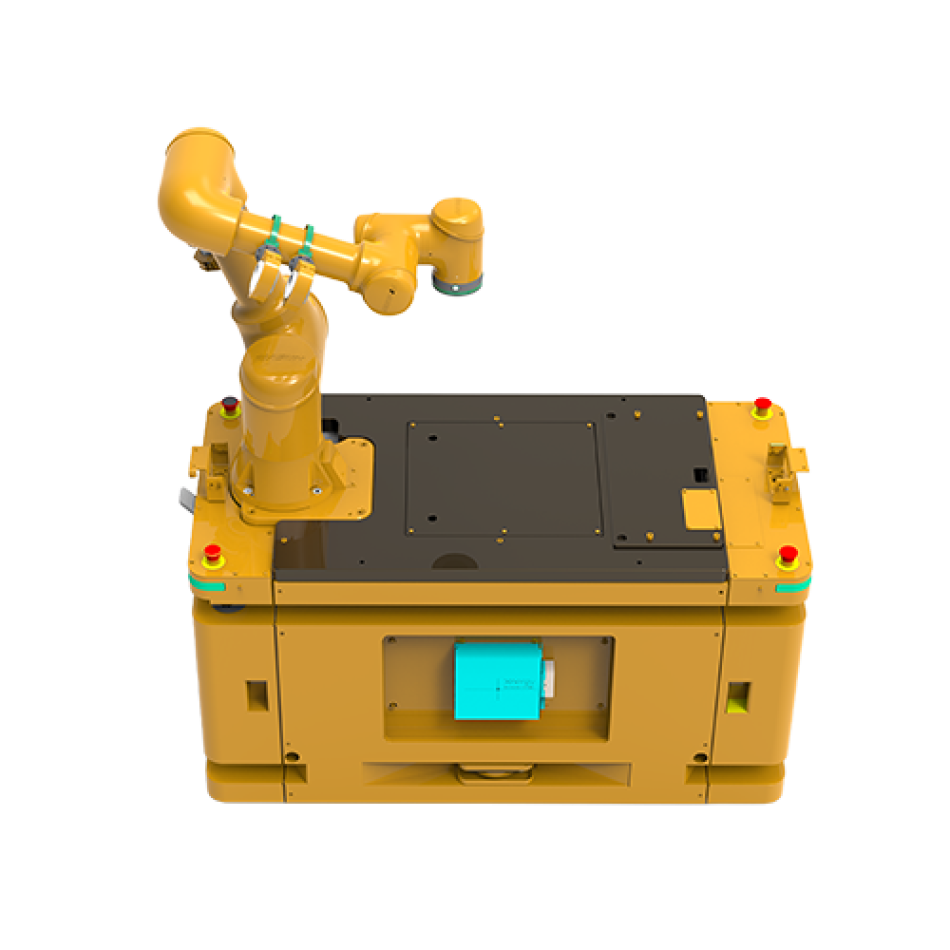

The SIASUN Mobile Manipulator Robot merges an autonomous mobile base with a robotic arm in a single unit, so it can drive itself to a station and then pick or place workpieces with high precision — linking successive steps of the production process without manual hand-offs. The platform navigates using SLAM combined with QR-code guidance and parks to within ±10 mm and ±1°, while the arm achieves an overall end-effector accuracy of ±0.5 mm. Configurations use SIASUN's GCR10, GCR14, or GCR20 collaborative arm with end-effector payloads of 10 kg, 14 kg, or 20 kg, and the mobile platform itself carries up to 670 kg. Safety provisions include collision detection, safety edges, obstacle-avoidance LiDAR, and emergency stops.
Built on a flexible design concept, the Mobile Manipulator Robot brings SIASUN's industrial robot and AGV expertise together to tackle complex intralogistics tasks such as material feeding and unloading, reducing manual handling and labor intensity on the shop floor. It suits smart factories, warehouses, and process-driven production environments — including automotive, lithium battery, 3C electronics, pharmaceutical, food, and photovoltaic manufacturing — where repeatable transport, accurate positioning, and safe autonomous operation are required. Purchasing is quotation-based, with final configuration and integration requirements confirmed per project.
Funktionen
Technische Daten
| Brand | SIASUN |
|---|---|
| Model | Mobile Manipulator Robot |
| Navigation Method | SLAM & QR code |
| End-Effector Payload | 10 kg / 14 kg / 20 kg (collaborative arm GCR10/14/20) |
| Platform Payload | 670 kg max |
| Parking Accuracy | ±10 mm / ±1° |
| End-Effector Overall Accuracy | ±0.5 mm |
| Safety Devices | Collision detection / safety edge / obstacle-avoidance LiDAR / E-stop |
Branchen
Häufig gestellte Fragen
It is an integrated mobile manipulator that pairs an autonomous mobile base with a SIASUN GCR-series collaborative robotic arm. The unit drives itself between stations using SLAM and QR-code navigation, then picks or places workpieces with an overall end-effector accuracy of ±0.5 mm.
It handles complex intralogistics tasks such as material feeding and unloading, connecting steps of the production process while reducing manual handling. Typical environments include warehouses and factories in automotive, lithium battery, 3C electronics, pharmaceutical, food, and photovoltaic manufacturing.
The mobile platform carries up to 670 kg, and the collaborative arm is available in three versions: GCR10, GCR14, and GCR20, with end-effector payloads of 10 kg, 14 kg, and 20 kg respectively.
The V-Series is an industrial robot that performs its work at a fixed installation point, whereas the Mobile Manipulator Robot mounts a collaborative arm on an autonomous mobile base, so one unit can move between stations and combine transport with precise part handling.
The Mobile Manipulator Robot is sold on a quotation basis — request a quote through Robotix Market and we will confirm pricing, availability, arm configuration, and integration requirements. The product is covered by the manufacturer's warranty provided by SIASUN, and Robotix Market ships worldwide.
