- 1000 kg platform payload The mobile platform carries loads of up to 1000 kg — the highest platform capacity in the SIASUN HC-X mobile cobot range.
- ±0.3 mm overall accuracy The combined platform-and-arm system maintains a maximum overall accuracy of ±0.3 mm for precision handling, assembly, and processing work.
- SLAM & QR-code navigation Hybrid navigation pairs SLAM mapping with QR-code guidance for reliable, repeatable positioning throughout the facility.
- Modular vision and gripper options SIASUN-developed vision systems, grippers, and other execution units let one robot be configured for handling, assembly, inspection, or precision processing.
- Real-time ground and airspace safety Comprehensive safety protection monitors the floor and the surrounding space in real time so the robot can share workspaces with people.
- Charging options for 24/7 duty Contact-based, wireless, and automatic charging methods support short-term, real-time, and continuous round-the-clock operation.
Beschreibung

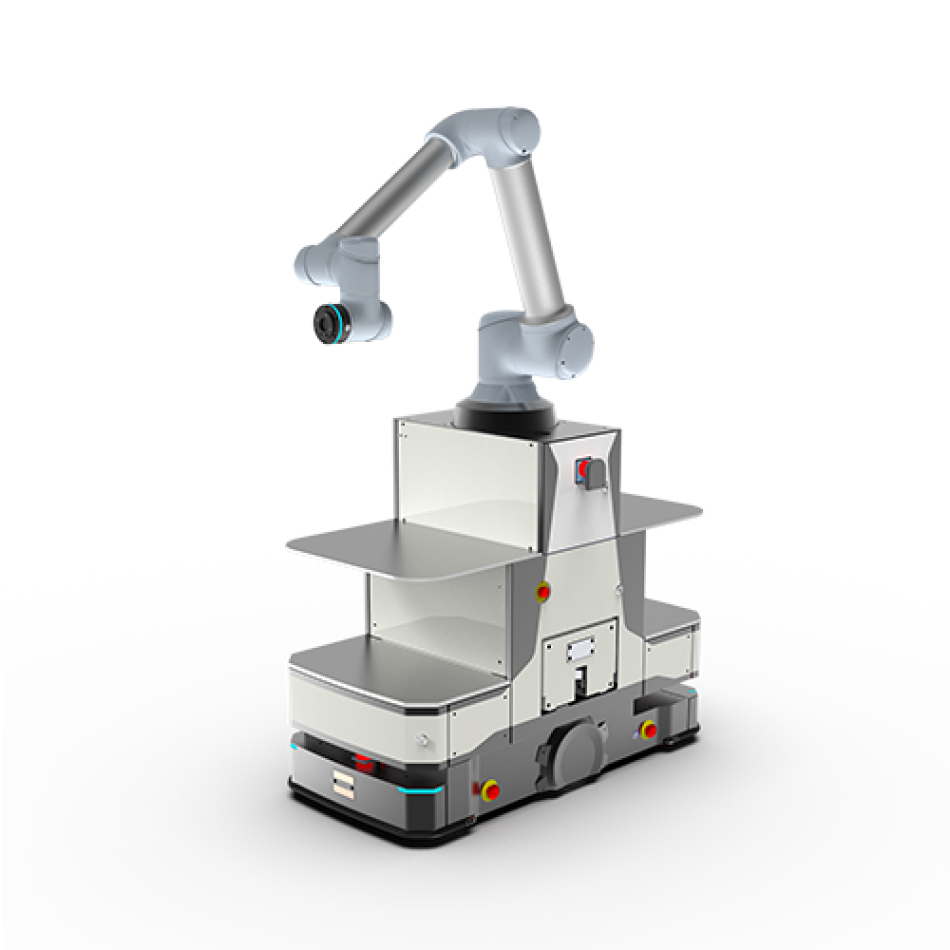

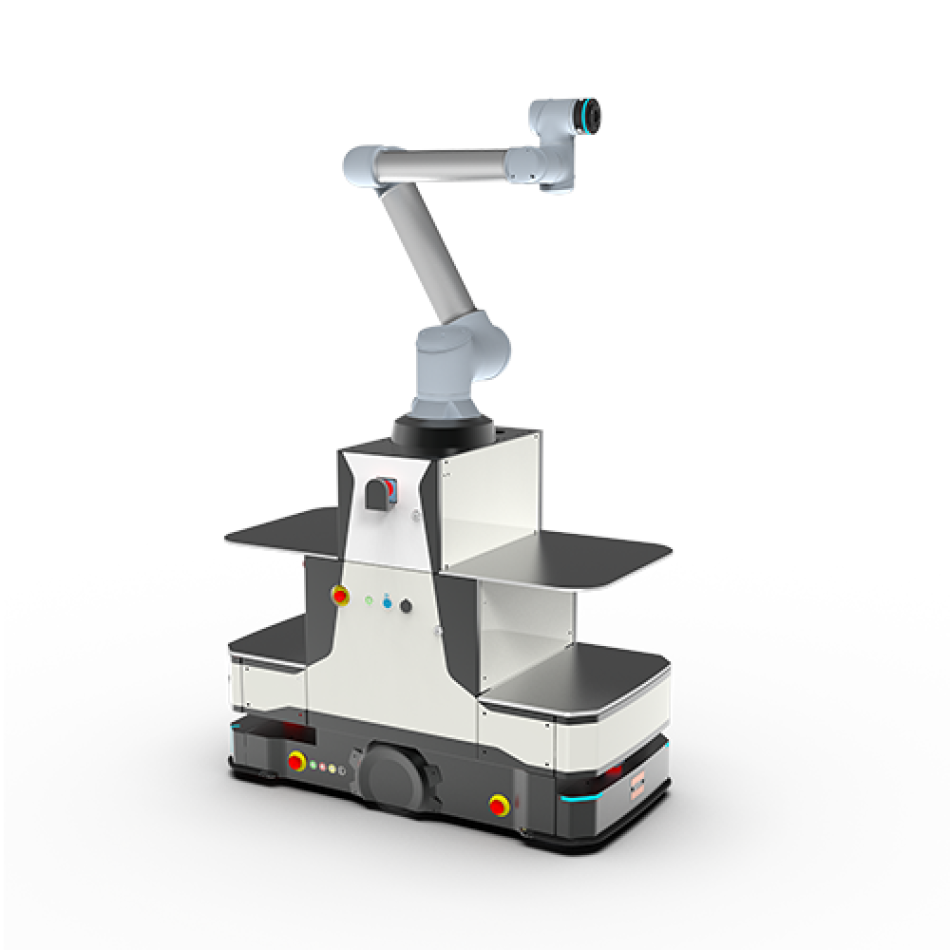

The SIASUN HC-X2-T is a mobile collaborative robot from SIASUN's DUCO range, uniting an autonomous mobile platform and a collaborative robot arm on one self-driving chassis. It is the heavy lifter of the HC-X family: the platform carries loads of up to 1000 kg, the complete system holds a maximum overall accuracy of ±0.3 mm, and navigation combines SLAM mapping with QR-code guidance for dependable, repeatable positioning. The vehicle measures 1250 × 600 × 1070 mm and can be fitted with SIASUN-developed vision systems, grippers, and other execution units, so a single unit can be configured for material handling, assembly, inspection, or precision processing. Real-time monitoring of both the ground plane and the surrounding airspace protects nearby staff, while a purpose-built chassis wheel system keeps the loaded platform stable in motion.
In production, the HC-X2-T travels between workstations to load and unload equipment, run inspection routines, and perform precision operations that a fixed robot cannot reach. SIASUN documents deployments across automotive manufacturing, including engine spark-plug assembly and screw-tightening, welding and gluing of body parts, NVH testing of electric drives, palletising, release-agent spraying for steering-wheel foam parts, and battery-pack bolt tightening for new-energy vehicles. An integrated teaching pendant shows the mobile platform and the collaborative arm on a single screen, which shortens commissioning, and multiple communication interfaces let the robot connect with existing factory systems. Contact-based, wireless, and automatic charging options support short-term, real-time, or continuous 24/7 operating patterns.
Funktionen
Technische Daten
| Brand | SIASUN |
|---|---|
| Model | HC-X2-T |
| Type | Mobile collaborative robot (mobile platform + collaborative arm) |
| Platform Load | 1000 kg |
| Max Overall Accuracy | ±0.3 mm |
| Navigation Method | SLAM & QR code |
| Vehicle Dimensions | 1250 × 600 × 1070 mm |
| Charging Options | Contact-based, wireless, and automatic |
| Safety | Real-time ground and airspace protection |
| Control Interface | Integrated teaching pendant (single screen for platform and arm) |
| End-Effector Options | Vision systems, grippers, and other execution units |
Branchen
Häufig gestellte Fragen
The HC-X2-T is a mobile collaborative robot from SIASUN's DUCO series. It combines a 1000 kg autonomous mobile platform with a collaborative robot arm on one chassis and can be equipped with vision systems, grippers, and other execution units for material handling, assembly, inspection, and precision processing.
It handles loading and unloading, inspection, and mobile precision work. Documented SIASUN deployments include engine spark-plug assembly and screw-tightening, welding and gluing of automotive body parts, NVH testing of electric drives, palletising, release-agent spraying, battery-pack bolt tightening for new-energy vehicles, and container welding.
All HC-X mobile cobots share the same DUCO architecture, ±0.3 mm maximum overall accuracy, and SLAM & QR-code navigation; they differ mainly in platform payload and chassis size. The HC-X2-T is the top-payload variant at 1000 kg with a taller 1250 × 600 × 1070 mm vehicle, while other models in the range carry between 120 kg and 670 kg. Unlike a fixed installation such as the SIASUN V-Series industrial robot, it drives itself between workstations.
Yes, Robotix Market ships the SIASUN HC-X2-T worldwide. The robot is covered by the manufacturer's warranty as provided by SIASUN.
Pricing is provided on request. Contact the Robotix Market team through the website's quote or inquiry form and we will respond with pricing, availability, configuration options, and shipping details.
