- Floor-to-4 m spray painting The painting edition sprays walls from 0 to 4,000 mm, which helps cut the scaffolding needed for interior work.
- External 20 L paint bucket Paint comes from a replaceable, refillable 20 L bucket outside the robot, sprayed at 8–12 MPa.
- Up to 150 m² per hour DaFang rates the painting efficiency of this edition at up to 150 m²/h.
- Paint-level and voice alerts Voice alerts based on multi-sensor information fusion warn of low paint and flag complex situations for the operator to judge.
- Wireless app control The app shows battery level and the temperature and humidity inside the chassis.
- Compact 80 kg chassis At up to 80 kg and 600 × 550 × 1,050 mm, it moves at up to 400 mm/s and positions to within ±10 mm.
Beschreibung

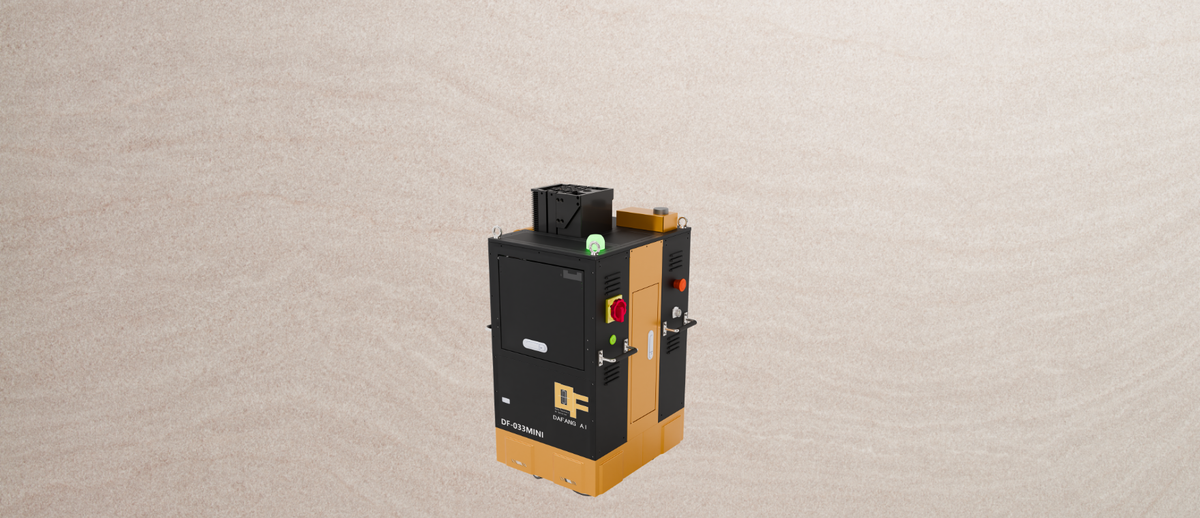

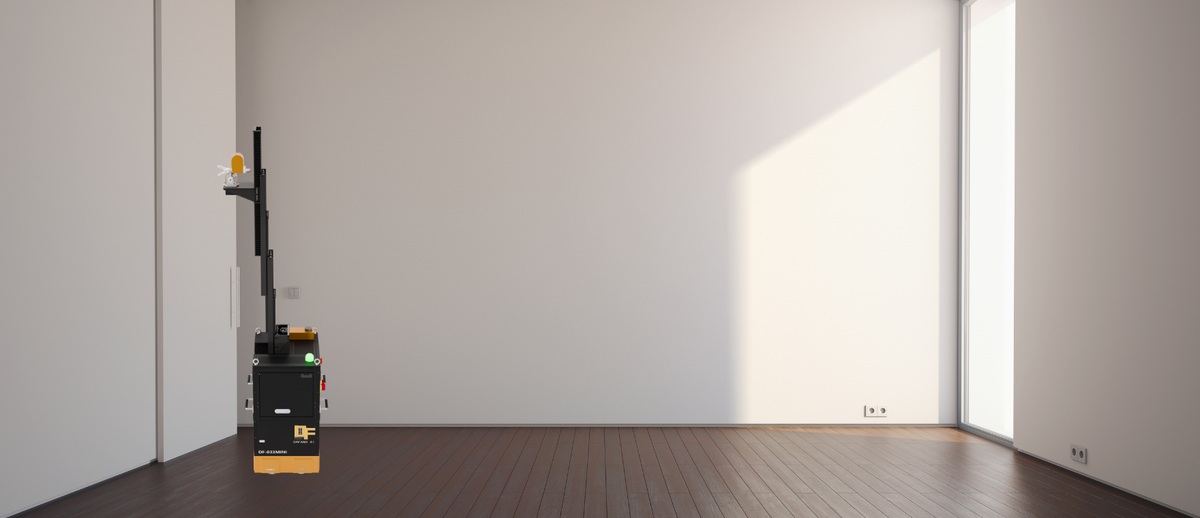

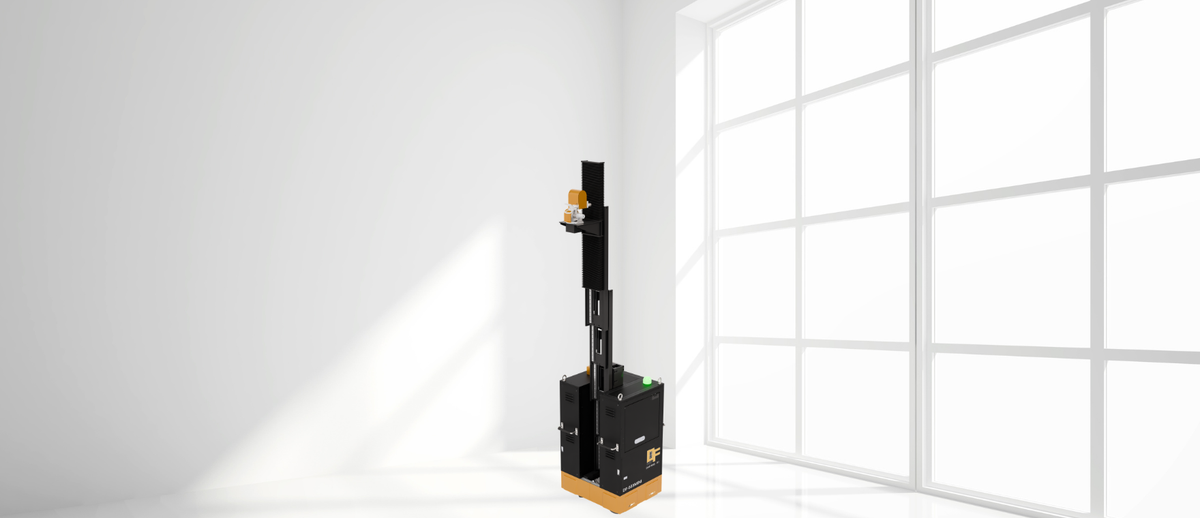

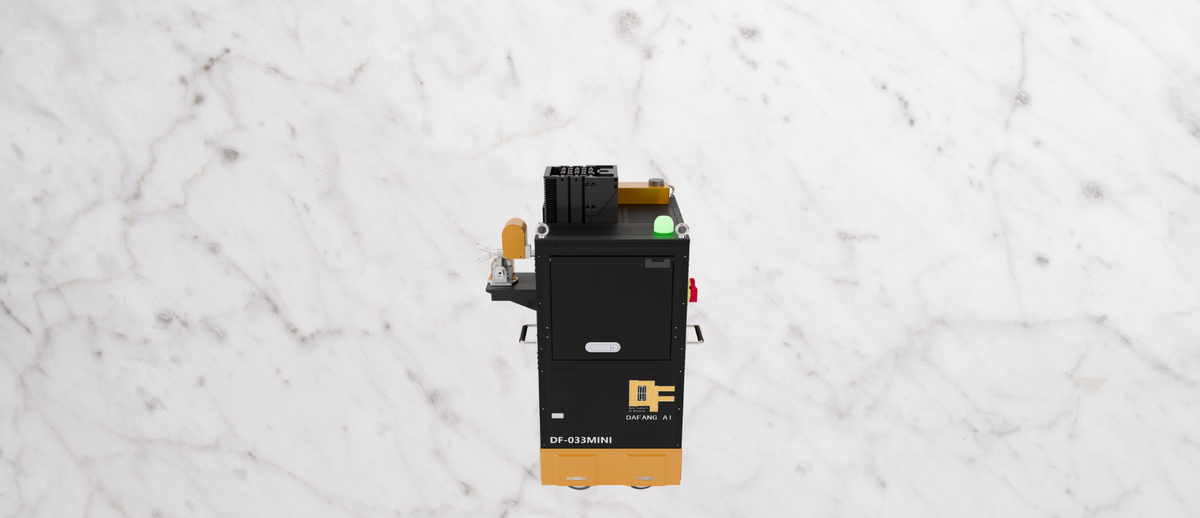

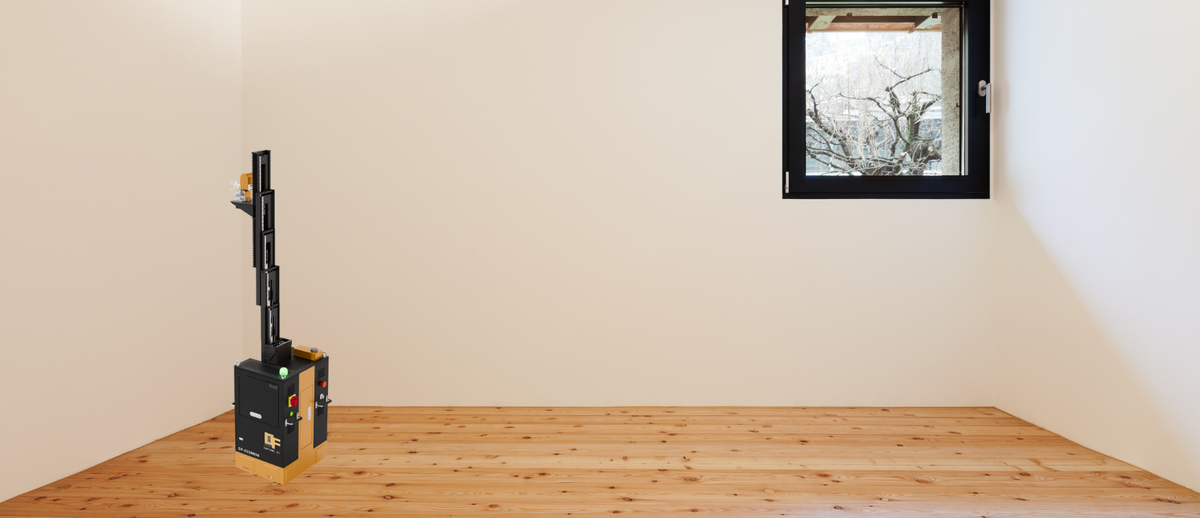

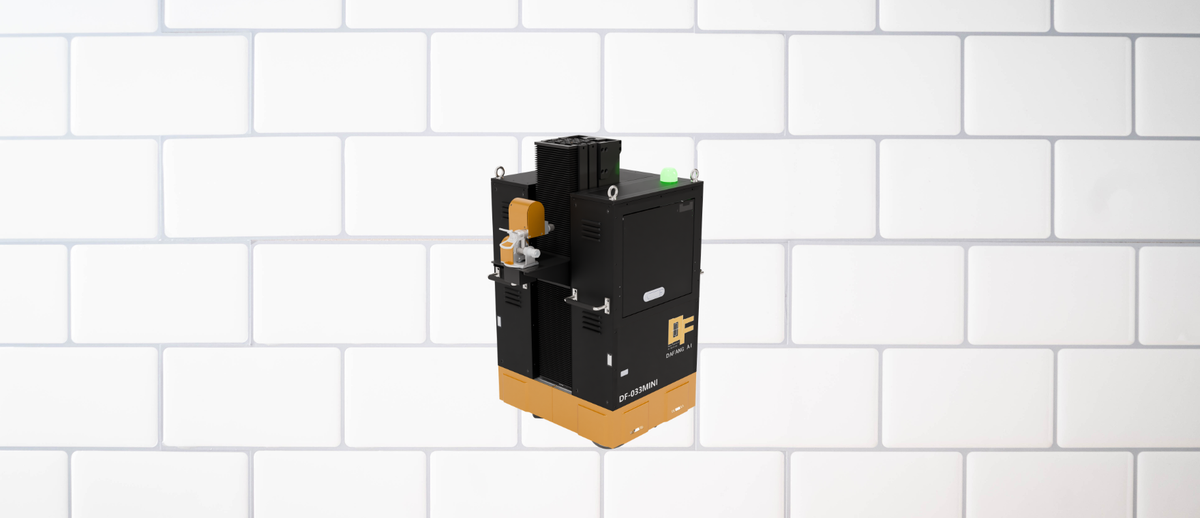

The DaFang DF033 MINI Wall Painting Robot is the spray-painting edition of the DF033 MINI, DaFang AI's compact wall robot. It sprays walls from floor level up to 4,000 mm at a spraying pressure of 8–12 MPa, drawing paint from an external 20 L bucket that is swapped or refilled as the job goes on.
DaFang rates its painting output at up to 150 m² per hour, and the aim is an even, controllable coat over large interior wall areas. Because the robot reaches the full 4 m itself, less scaffolding has to go up for the upper part of the wall, which also improves site safety.
The operator stays in charge through a wireless app that shows the battery level and the temperature and humidity inside the chassis. Voice alerts based on multi-sensor information fusion flag situations that need a person's judgement, and a paint-level reminder warns the crew when paint is running low.
The robot weighs up to 80 kg at 600 × 550 × 1,050 mm, against up to 160 kg for DaFang's four-in-one DF033 Wall Finishing Robot, which changes modules to grind, skim, sand and paint. This listing is the painting edition; the sanding and disinfecting editions of the DF033 MINI are listed separately. Navigation, power supply, battery and the spray tips supplied are confirmed with the quotation.
Key Capabilities
- Spray painting to 4 m: Sprays walls from 0 to 4,000 mm, helping cut the scaffolding needed for interior work.
- External 20 L bucket: Paint is drawn from a replaceable, refillable bucket at 8–12 MPa.
- Up to 150 m²/h: DaFang's painting efficiency rating for this edition.
- Voice and paint-level alerts: Multi-sensor fusion warns the operator of complex situations and low paint.
- Wireless app: Battery level and chassis temperature and humidity are shown on the operator's device.
This model is offered on a quotation basis. Configuration, accessories, integration scope and delivery schedule all change the final figure, so pricing is confirmed per project rather than listed.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the full manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Funktionen
Technische Daten
| Brand | DaFang AI |
|---|---|
| Model | DF033 MINI, painting edition |
| Product Type | Wall spray-painting robot |
| Function | Wall spray painting |
| Paint Supply | External 20 L paint bucket, replaceable and refillable |
| Painting Height | 0–4,000 mm |
| Painting Efficiency | ≤150 m²/h |
| Spraying Pressure | 8–12 MPa |
| Robot Weight | ≤80 kg (176.37 lb) |
| Robot Size | 600 × 550 × 1,050 mm (23.6 × 21.7 × 41.3 in) |
| Climbing Gradient | ≤25° |
| Crossing Width | ≤40 mm |
| Movement Speed | ≤400 mm/s |
| Positioning Accuracy | ±10 mm |
| Control | Wireless app: battery level, chassis temperature and humidity |
| Alerts | Voice alerts (multi-sensor information fusion), paint-level reminder |
| Navigation | Confirm at quote |
| Power Supply and Battery | Confirm at quote |
| Spray Tips and Accessories Supplied | Confirm at quote |
Branchen
Häufig gestellte Fragen
It spray-paints interior walls from floor level up to 4,000 mm. It is the painting edition of DaFang AI's compact DF033 MINI, weighing up to 80 kg.
Paint comes from an external 20 L bucket that can be replaced or refilled, sprayed at 8–12 MPa. DaFang rates the painting efficiency at up to 150 m² per hour.
Its painting height runs from 0 to 4,000 mm, so it covers a standard interior wall to 4 m from the floor and reduces the scaffolding needed for the upper section.
A wireless app shows the battery level and the temperature and humidity inside the chassis. Voice alerts warn of low paint and flag complex situations that need the operator's judgement.
The DF033 is a four-in-one machine of up to 160 kg that changes modules to grind, skim, sand and paint. The DF033 MINI painting edition is a compact painting robot of up to 80 kg at 600 × 550 × 1,050 mm.
It is offered by quotation — configuration, quantity and delivery are confirmed per project.
